商品の詳細:
|
| タイプ: | 2セクションの伸縮群 | 状態: | 新しい、100％新しい、新しい望遠鏡の腕 |
|---|---|---|---|
| 機械重量: | 35t | 色: | 顧客のリクエスト |
| アプリケーション: | クローラー掘削機 | 提供されるアフターセールスサービス: | オンラインサポート、ビデオテクニカルサポート |
| 材料: | BS700/Q690D | 保証: | 6ヶ月 |
| バケット容量: | 1m³ | ブランド: | Zhonghe |

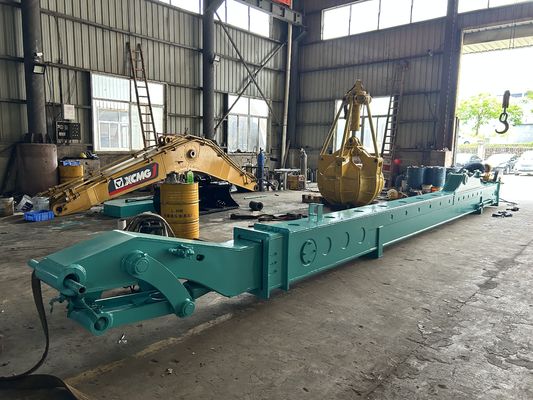

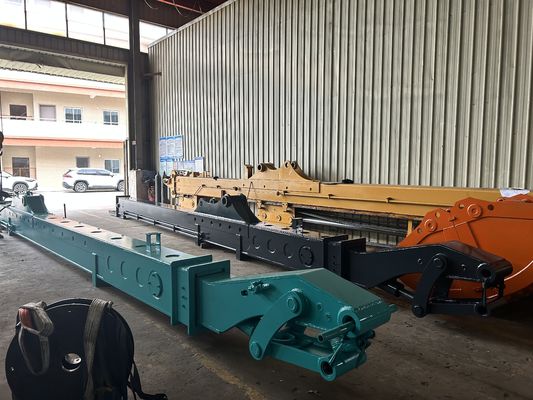

Two Section Telescopic Arm for SK350 Excavator Adjustable Excavator Telescopic Arm China Excavator Telescopic Boom Company
What is an excavator telescopic arm
A telescopic arm for excavators consists of a stationary frame, a sliding mechanism, a wire rope, and a telescopic hydraulic cylinder. The excavation depth and operational radius can be adjusted by modifying the number of sliding sections. It is often equipped with a bucket for digging deep pits and handling materials like soil, sand, and coal.
The two-stage telescopic boom utilizes LG700 steel, while Q355B is used for other structural components to ensure durability and reduced weight. Features include:
22-ton heavy-duty bucket cylinder
Enlarged reel with reinforced spring plates
Multi-layered reinforcement at the bearing points
LG700 high-strength steel box structure
A strengthened pivot end for improved resistance to excavation forces
High-Strength, Low-Weight Build – We use reinforced steel to improve durability while reducing excavator stress.
Enhanced Depth Capability – Our arm reaches about 20 cm deeper than other brands of similar length.
Advanced Cylinder Support – The double-slider mechanism ensures better stability, reducing vibrations and prolonging cylinder life.
Upgraded Hose System – A protective dual-layer casing prevents excessive movement, making hose replacements simpler.
Effortless Servicing – The external bucket cylinder placement ensures hassle-free maintenance and part replacement.
|
Excavator
(ton)
|
Max Depth
(mm)
|
Effective Length
(mm)
|
Bucket Capacity
(cbm)
|
Cylinder
(ton)
|
Cylinder
(ton)
|
|
12-15
|
10000 | 8170 | 0.2 | 6 | 0 |
| 20-25 | 12000 | 8700 | 0.4 | 20 | 0 |
| 20-25 | 14000 | 10680 | 0.4 | 20 | 2 ton |
| 30-35 | 16000 | 12080 | 0.6-0.8 | 22 | 1 ton |
Application of Two-section Telescopic Arm
Excavating at Greater Depths – Enables deep trenching and foundation digging beyond standard booms.
Demolition at Heights – Ideal for safely dismantling high-rise structures.
Operations in Restricted Areas – Useful for sites with maneuverability constraints, such as under bridges.
Dredging & Sediment Removal – Extends reach for clearing waterways and improving drainage.
Handling Heavy Loads – Transfers bulk materials like coal, gravel, and construction debris.
Timber & Agricultural Use – Supports forestry applications and large-scale farm operations.
High precision machine of Zhonghe Machinery Manufacturers
Large, floor-mounted double-sided boring and milling lathe:
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Co., Ltd., established in 2018, is an innovative manufacturer and trading enterprise specializing in custom excavator boom arms and attachments. Located in Cuishanhu New District, Kaiping City, Jiangmen, Guangdong, we operate a 21,000m³ steel-structured workshop equipped with high-precision machinery. Our team consists of 100+ skilled technicians, including 50 expert welders with over seven years of experience, 30 senior designers, and a dedicated R&D team with 10+ years of expertise and 100+ technical patents. With a strict quality and cost control system, we produce up to 800 excavator boom arms annually, delivering reliable products and excellent service.
CE certification & Utility model patent certificates
Our products have been sold to more than 60 countries, and our transportation methods include sea transportation, land transportation, and air transportation. Our packaging is wooden box packaging or stretch film packaging. The goods will be packed before shipment and then loaded into the container to ensure the safety of the goods.
Packaging & Shipping
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to the success.
Q: Is the length of the telescopic arm the total length or the digging depth?
A: The length of a two-stage telescopic arm refers to the digging depth. For example, a 14-meter telescopic arm means that the maximum digging depth is 14 meters, so it is called a 14-meter telescopic arm. The actual arm length is not only 14 meters.
